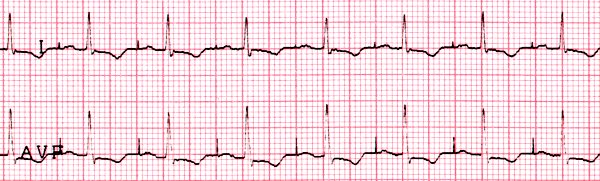

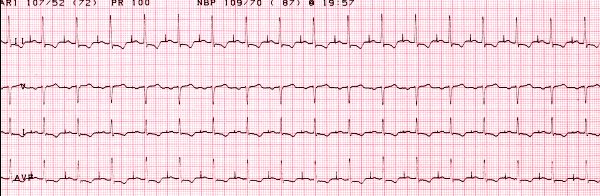

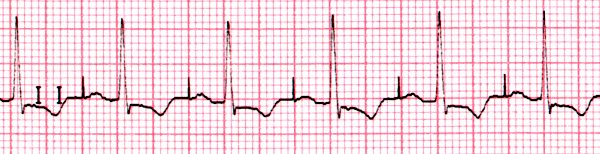

What are the sharp spikes that precede each beat?
What immediately follows each spike?
What is the P-R interval?  What is the QRS duration?  What is the rate?
What chambers are being paced here?  What mode is the pacer in?
